Protecting conductors is an essential component when applying
effective guards to prevent animal and bird caused outages.

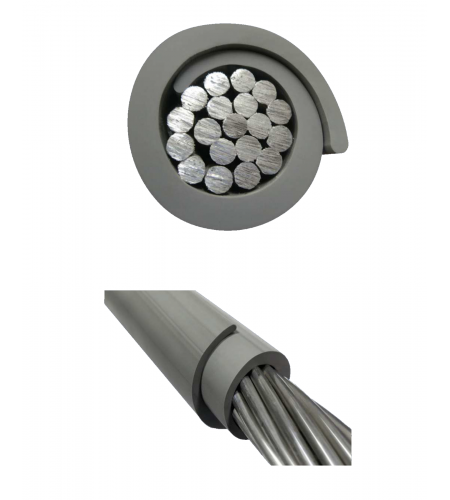

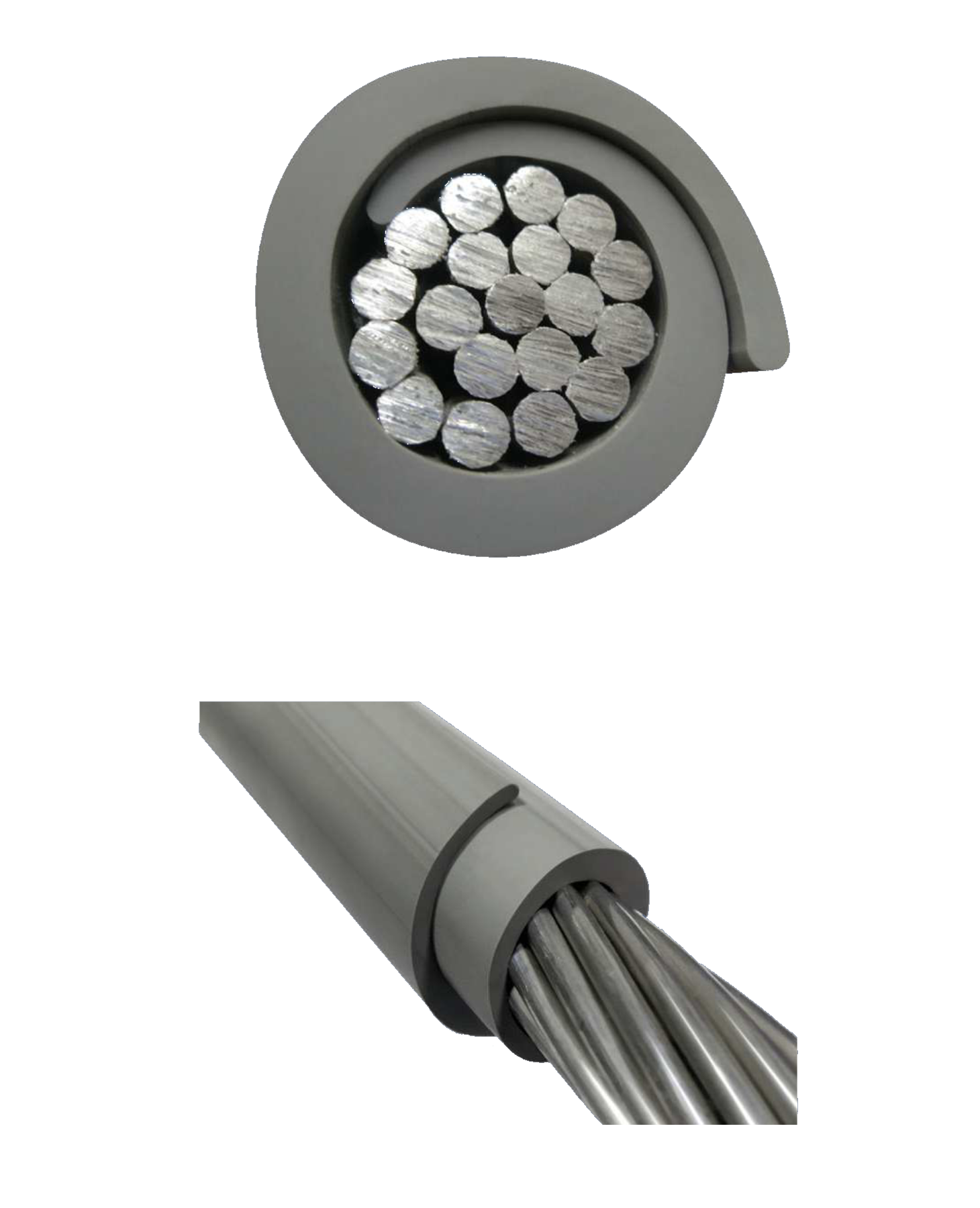

Reliaguard’s GreyEEL Conductor Cover helps prevent contacts by
eliminating gaps in coverage. The product’s improved protection
is achieved with a significantly overlapped seam design and
material memory technology that supports exceptional closure
performance.
Material Properties
| Material |
Silicone |
| Colour |
Grey |
| Specific Gravity |
1.65 |
| Durometer |
55 to 75 |
| Tensile, PSI |
640 |
| Elongation % |
220 |
| Electrical Rating - Phase to Ground |
20 kV |

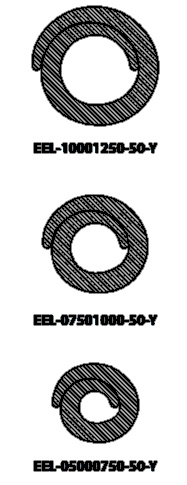

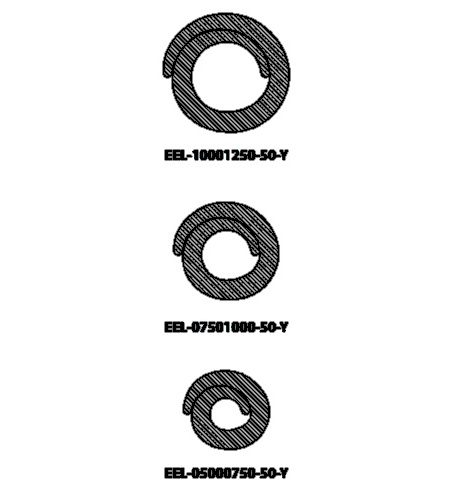

| GreyEEL Part Number |
Wire / Conductor Type |
Conductor Size Range |
Cover OD Size (Inches) |
| EEL-02503750-50-Y |
4, 3, 2,1, 1/0 |
0.200” - 0.370” |
3/8 |
| EEL-03750500-50-Y |
2/0, 3/0, 4/0 |
0.375” - 0.495” |
1/2 |
| EEL-05000750-50-Y |
266.88, 336.4, 397.5 |
0.500” - 0.745” |
3/4 |
| EEL-07501000-50-Y |
447, 556.5, 636, 605, 715.5, 900, 666.6 |
0.750” - 1.000” |
1 |
| EEL-10001250-50-Y |
795, 954, 1033.5, 1113, 1192.5 |
1.005” - 1.295” |
1 1/4 |
| EEL-12501500-50-Y |
1272, 1351.5, 1431, 1590 |
1.300” - 1.450” |
1 1/2 |
| EEL-15001750-25-Y |
1780, 2156, 2167 |
1.500” - 1.750” |
1 3/4 |
| EEL-17502000-25-Y |
2312, 2515 |
1.800” - 2.000” |
2 |
| EEL-2500BUSP-06-Y |
GreyEEL Bus Cover - 2.5” bus Round |
2” - 2.5” |
2.5 |
| EEL-3500BUSP-06-Y |
GreyEEL Bus Cover - 3.5” bus Round |
2.5” - 3.5” |
3.5 |
| EEL-4500BUSP-06-Y |
GreyEEL Bus Cover - 4.5” bus Round |
3.5” - 4.5” |
4.5 |
