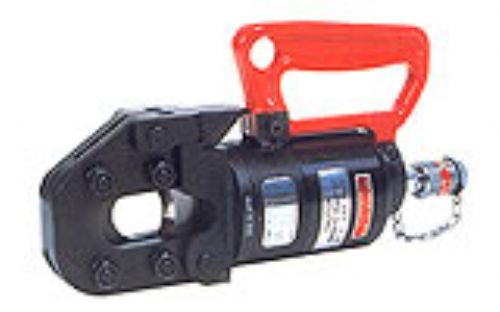

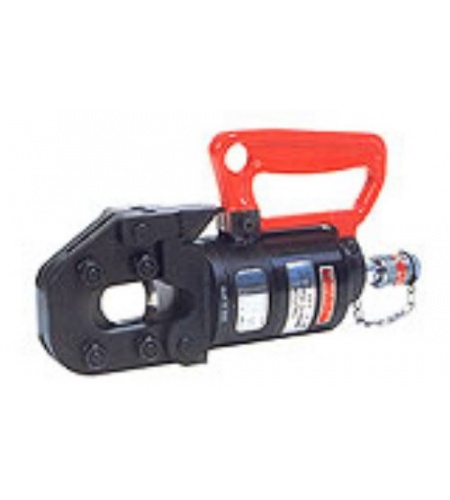

SP-32 20Ton Hydraulic Cutter Head CLY 930 SP-32
Call: +44 (0) 1234 855 855 to order
The SP-32 hydraulic cutter head features:
- Fast cutting with remote operation.
- Operated by any hydraulic pump with rated oil pressure of 700 bar.
- Equipped with PT 3/8" threaded high pressure couplers. (PT - NPT adapters are available on request for NPT 3/8" threaded couplers).
- Blades are easily replacable.
- Lock pin type cutter head.
- Full range of spare parts readily available.
| Specifications | ||
| Max Output | 20Ton | |
| Length | 300mm | |
| Weight | 10.0kg | |
| Max Input Pressure | 700bar | |
| Oil Volume Required | 135cc | |
| Cutting Capcity | ||
| Round Bar | Soft AI Bar Soft Steel Bar Reinforcing Bar |
- 25mm 25mm |
| Wire Strands | Bare Copper 1x7 AI Guy Lead ASCR Steel Wire |
32mm 32mm 32mm 32mm |
