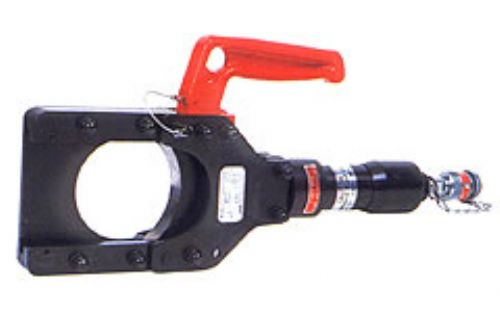

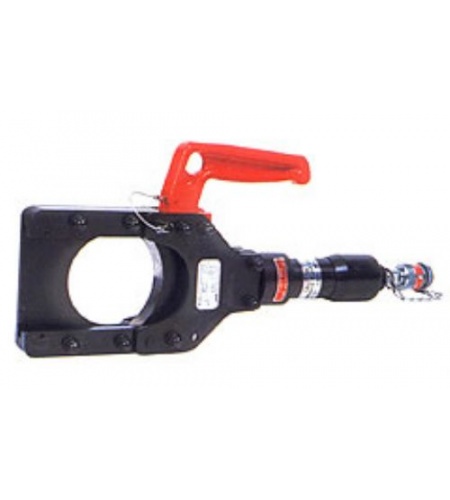

The P-85 hydraulic cutter head features:
- Fast cutting with remote operation.
- Operated by any hydraulic pump with rated oil pressure of 700 bar.
- Equipped with PT 3/8" threaded high pressure couplers. (PT - NPT adapters are available on request for NPT 3/8" threaded couplers).
- Blades are easily replacable.
- Lock pin type cutter head.
- Full range of spare parts readily available.
| Specifications |
| Max Output |
3Ton |
| Length |
460mm |
| Weight |
7.2kg |
| Max Input Pressure |
700bar |
| Oil Volume Required |
65cc |
| Cutting Capcity |
| Wire Strands |
Bare Copper
1x7 AI Guy |
28mm
46mm |
| Cable |
Sheath Cable
SWA Cable |
85mm
50mm |
