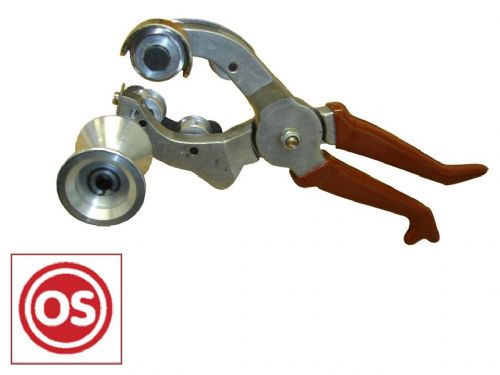

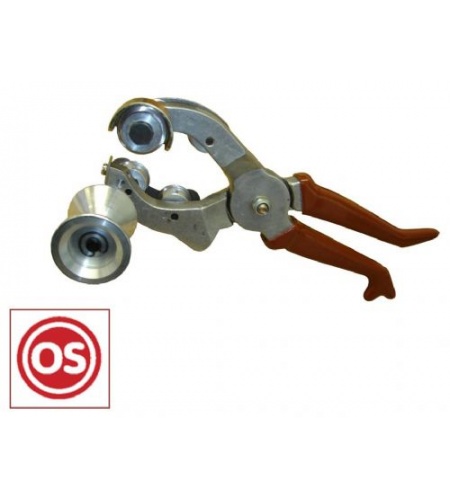

The CLY 370 OS45 has been designed to remove the PE, PVC or PR Outer Sheath from 95mm, 185mm and 300mm, three or four core waveform cables. With four circular cutting blades with pre-determined cut depths, the tool only needs to be rotated through 90_ to complete a full radial cut. The longitudinal cut is made using the roller as a guide and a single circular blade with a pre-set cut depth. The sheath can be peeled off using the tooth blade on the end of the pliers.

The radial cut depth should be 0.2 - 0.5mm less than the nominal jacket wall thickness.
