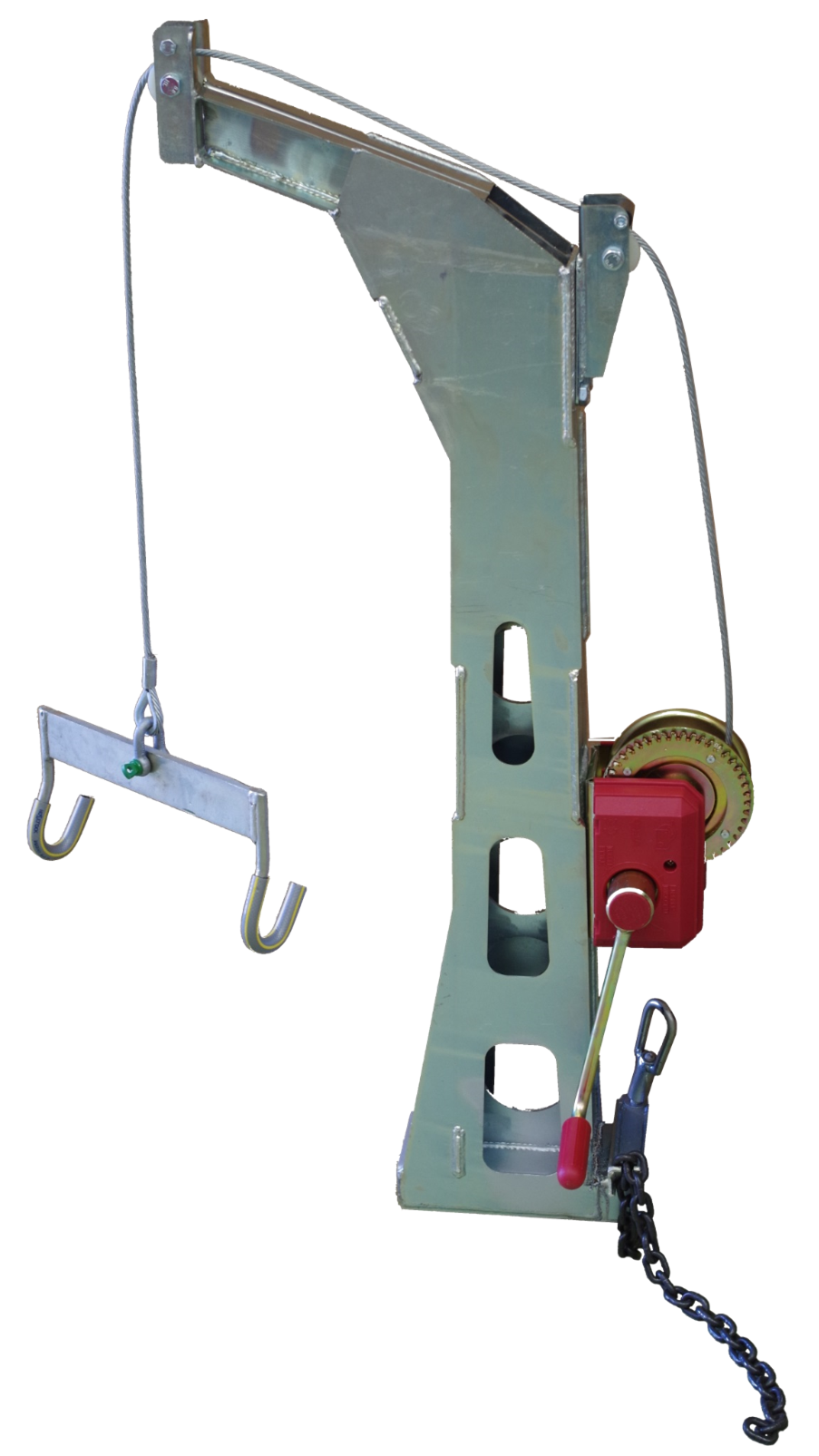

Heavy Duty Conductor Lifter (33kV & 11kV) CLY 1021B

1021B


A complete ground-up redesign, this appliance has been specially devised to facilitate the replacement of old or damaged insulators on 33kV lines. The unit fixes directly onto the cross arm. A built in CE marked winch allows the conductor to be lifted effortlessly clear of the insulator and then lowered back into place. Construction is laser cut and zinc plated steel.

Available optionally with a nylon strap hoist if company policy requries this. Please contact us

Max Lift SWL Weight
850mm 500kg 25kg





Get in touch with Clydesdale for more information
