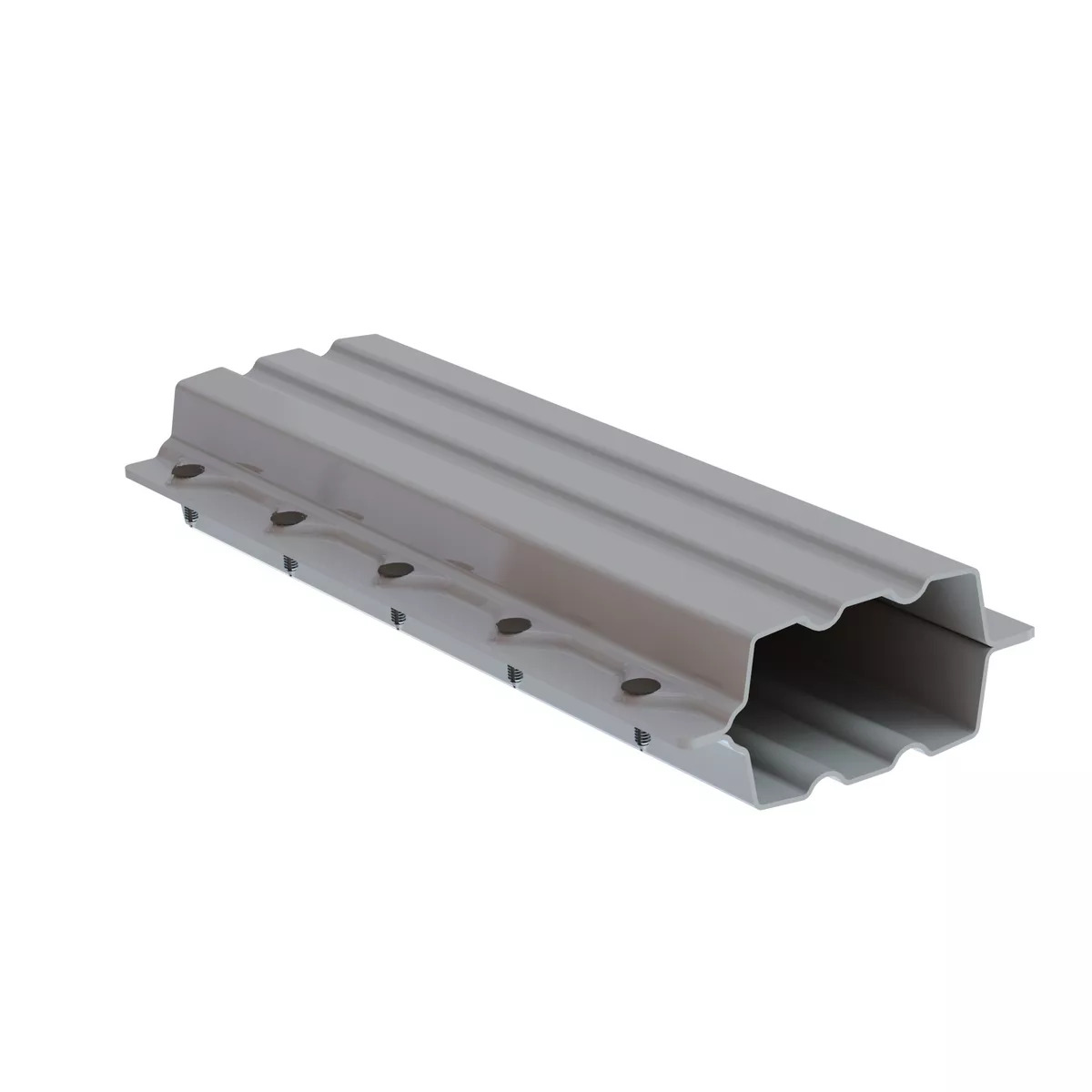

Reliaguard’s Cross Arm Guard is specifically produced for steel cross
arms on poles. Phase to ground outages occur with equipment that
is installed on these arms such as switches and cut outs. Squirrels
or raccoons sitting underneath these arms when they open create
situations where outages may occur.
FEATURES
• Cross Arm Guards effectively enclose steel cross arms
and are designed to ensure long-term retention
• The push fasteners included with each guard provide
a reliable method of protecting guards from being
inadvertently opened and dislodged
• Manufactured from a proprietary material known as
Reliatanium™
• Reliatanium achieves a V-0 flammability classification,
the highest rating for the UL-94 test standard
| Product Name |
Part Number |
Height Dimensions* |
Width Dimensions* |
Length Dimension* |
| Cross Arm 3x3 |
BB-30520-S |
3.00 (76.2) |
5.00 (127) |
20.00 (508) |
| Cross Arm 3x3 |
BB-30542-S |
3.00 (76.2) |
5.00 (127) |
44.00 (1117.6) |
| Cross Arm 5x5 |
BB-50520-S |
5.00 (127) |
5.00 (127) |
20.00 (508) |
| Cross Arm 5x5 |
BB-50542-S |
5.00 (127) |
5.00 (127) |
44.00 (1117.6) |
* Dimensions in inches (mm)
