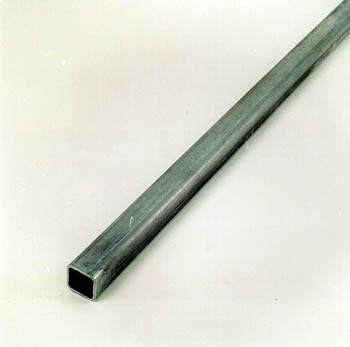

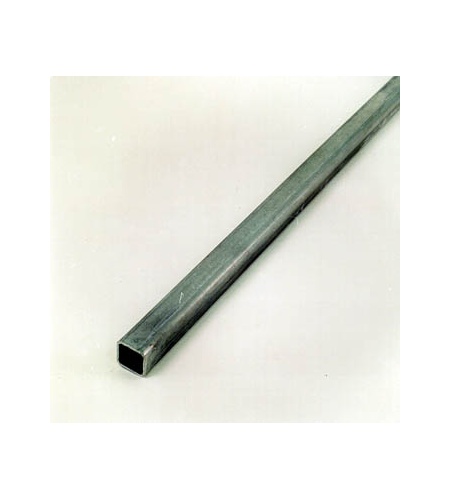

Mounted between the phase elements and connected to the operating rod by the axis coupling the phase coupling tube is a box section rod which turns to open / close the Air Break Switch Disconnector. For 36kV rated Air Break Switch Disconnector the phase coupling tube is double lined to ensure sufficient torque strength.
| Part No. |
Description |
Length |
| CLY 202 A6616-01 |
Phase Coupling Tube - 24kV |
1.25m |
| CLY 202 A6616-02 |
Phase Coupling Tube - 24kV |
1.65m |
| CLY 202 A6616-03 |
Phase Coupling Tube - 24kV |
2.0m |
| CLY 202 A6616-04 |
Phase Coupling Tube - 24kV |
1.50m |
| CLY 202 A6616-11 |
Phase Coupling Tube - 36kV |
2.0m |
| CLY 202 A6616-12 |
Phase Coupling Tube - 36kV |
2.50m |
| CLY 202 A6616-13 |
Phase Coupling Tube - 36kV |
3.0m |
| CLY 202 A6616-14 |
Phase Coupling Tube - 36kV |
3.30m |
