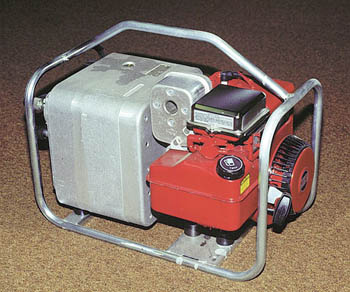

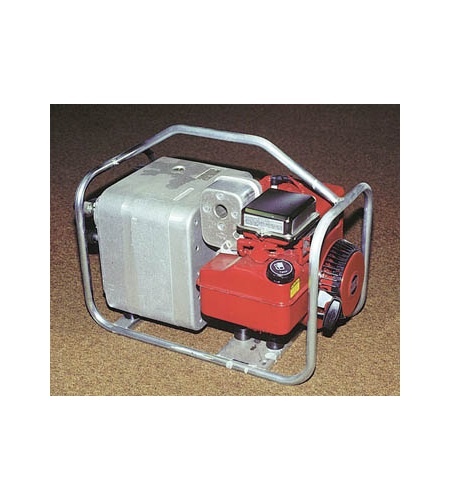

Principally designed to power the Fibre Optic cable feeder this power pack can also power various other equipment, both supplied and not supplied by Clydesdale. Manufactured from only the highest quality components to be robust, efficient and reliable the unit is relatively lightweight and can be used to run such things as auger drills and earth drivers to name but two.
The unit is both air cooled and sealed and develops either 3 or 5hp. Dimensions of the unit are as follows 600mm long x 350mm wide x 480mm high with a weight of 39kg for the 3hp unit and 42kg for the 5hp unit. Both have a fuel tank capacity of 9 litres.
| Engine |
Max Pressure |
Max Flow |
| 3hp |
130 bar |
7 l/min |
| 5hp |
160 bar |
11 l/min |
Note: The power pack can also be supplied with an electric motor. Clydesdale can manufacture almost any capacity, flow or output that your requirements demand.
