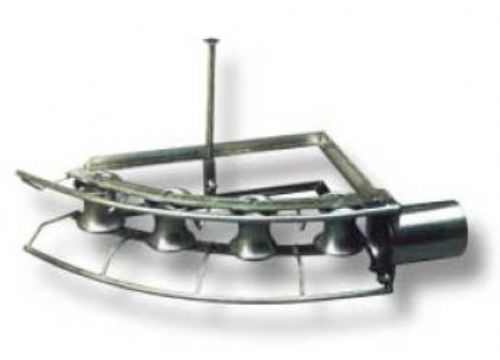

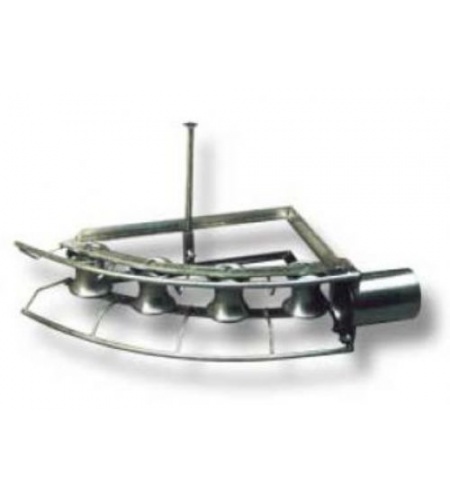

Manufactured from aluminium rollers on a galvanised steel frame, these duct entry devices locate in the duct mouth and can be pinned in place to facilitate cable installation. Max cable diameter 126mm, cable bend radius 840mm. Duct size is varied by changing the duct entry sleeves.
| Part No. |
Duct Diameter |
Dimensions |
Weight |
| CLY 682 604 AL/1 |
80mm |
500 x 505 x 150mm |
24kg |
| CLY 682 604 AL/2 |
100mm |
500 x 505 x 150mm |
24.5kg |
| CLY 682 604 AL/3 |
120mm |
500 x 505 x 150mm |
25kg |
| CLY 682 604 AL/4 |
140mm |
500 x 505 x 150mm |
26kg |
