Everyone involved with overhead power lines needs to know whether the network on which they are about to work is LIVE or DEAD. This simple to use Voltage Detector has a number of unique features, the most novel of all is its in-built self checking device which tests all of its circuitry, battery connection and voltage, as well as the presence and stability of the threshold voltage.
In the event of a live contact the device emits a flashing red warning light as well as an audible signal, should the contact be dead then a constant green light and no audible signal is given. Should either the battery voltage diminish or the operator fail to disengage the unit will automatically turn itself off.
| Frequency Range: 50 and 60Hz |
Temperature Range: -25°C to +40°C |
| Weight: 0.38kg |
Length: 188mm |
| Diameter: 49mm |
|

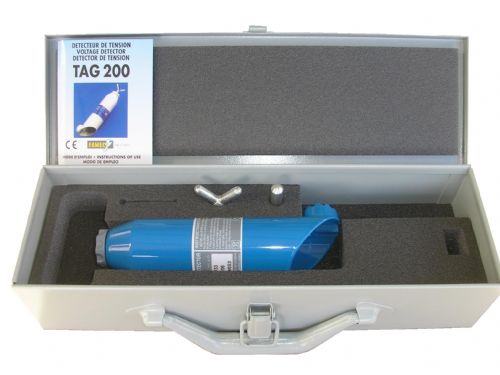

| Standard Kit Comprises:1x Tester, 1x Metal Carry Box, 1x 'Y' Electrode, 1x Straight Electrode |
Many voltage ranges in the ratio 1:3 can be configured (as well as those available below), please let us know your requirements.
Accessories
| Description |
Reference |
| 40mm multi-purpose probe (M8) |
47736 |
| 40mm straight electrode (M8) |
41811B |
| 40mm Y-shape electrode (M8) |
42029 |
| 25mm straight electrode (M6) |
41811A |
| 25mm Y-shape electrode (M6) |
4230A |
| Soft carrying case |
SBH1000 |
| Metal carrying box |
SBH1000 |
| Adapter for Grip-All Clamp Stick |
32739 |
| APV Stick Adapter |
32715V |
