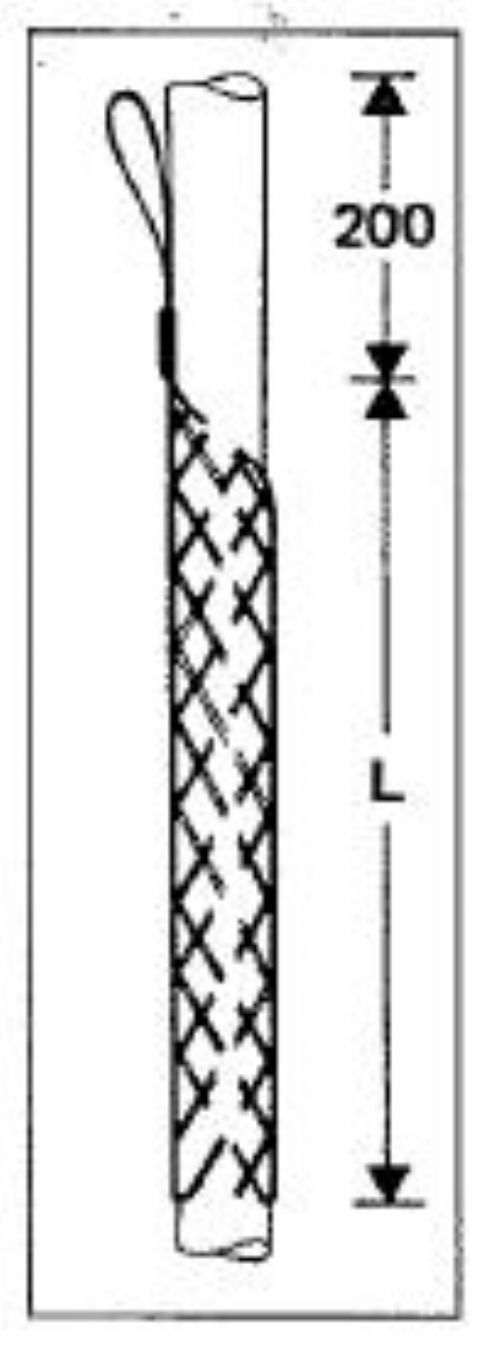

For the installation of very long cables or other applications when the stocking needs to be applied anywhere along the cable length. Instead of having to fit the stocking over the end of the cable like a sock, these stockings are wrapped around the cable at any point along its length, then laced up to grip the cable for pulling.
| Part No. |
Length |
Cable Diameter |
MBL |
Weight |
CLY 000 506/10
CLY 000 509/10 |
600mm
900mm |
10-20mm |
1860kg |
0.2kg
0.40kg |
CLY 000 506/20
CLY 000 509/20 |
600mm
900mm |
20-30mm |
2256kg |
0.25kg |
CLY 000 506/30
CLY 000 509/30 |
600mm
900mm |
30-40mm |
3696kg |
0.37kg |
CLY 000 506/40
CLY 000 509/40 |
600mm
900mm |
40-50mm |
5490kg |
0.63kg
0.95kg |
CLY 000 506/50
CLY 000 509/50 |
600mm
900mm |
50-65mm |
7320kg |
0.87kg
1.16kg |
CLY 000 506/65
CLY 000 509/65 |
600mm
900mm |
65-80mm |
7320kg |
0.91kg
1.20kg |
CLY 000 506/80
CLY 000 509/80 |
600mm
900mm |
80-95mm |
9150kg |
0.90kg
1.34kg |
CLY 000 506/95
CLY 000 509/95 |
600mm
900mm |
95-110mm |
10613kg |
1.40kg
2.30kg |
CLY 000 506/110
CLY 000 509/110 |
600mm
900mm |
110-130mm |
10613kg |
1.40kg
2.30kg |
