The CLY 210 SO 130 & CLY 210 SO 136 are along the lines of traditional suspension clamps, however, these clamps will take almost every size of ABC. This is achieved by the integral insert replacing the traditional rubber insert. This means no mistakes by linesman taking the wrong equipment to site and vastly reduced quantities of stock both centrally and regionally.

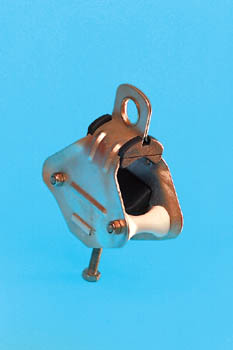

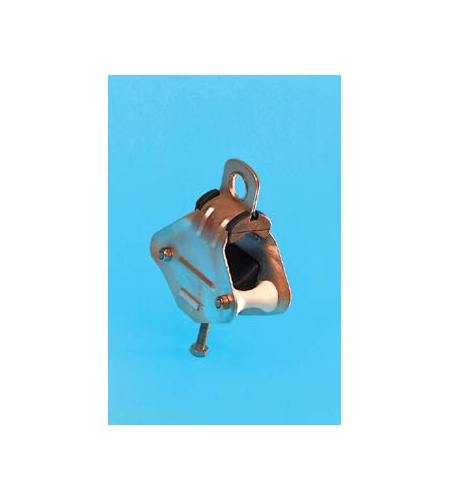

The CLY 210 SO 99 is a completely new design, the same as the SO 130 & SO 136 in that it takes almost all sizes of ABC it also has in-built rollers, which allows the clamp to act as the intermediate roller during erection as well. Used with the extension roller CLY 210 ST 26-99 it can also act at an angle upto 90 degrees.
| Part No. |
Clamp Type |
Sizes |
Angle up to |
Weight |
| CLY 210 ST 130 |
Suspension |
2 x 50-120 / 4 x 25-120 |
60°C |
0.3kg |
| CLY 210 SO 136 |
Suspension |
2 x 50-120 / 4 x 25-120 |
90°C |
0.5kg |
| CLY 210 SO 99 |
Suspension |
2 x 50-120 / 4 x 25-120 |
30°C |
0.9kg |
| CLY 210 SO 26-99 |
Extension Roller |
N/A |
90°C |
2.3kg |
| CLY 210 SO 125 |
Wall |
2 x 50-120 / 4 x 25-120 |
30°C |
0.5kg |
