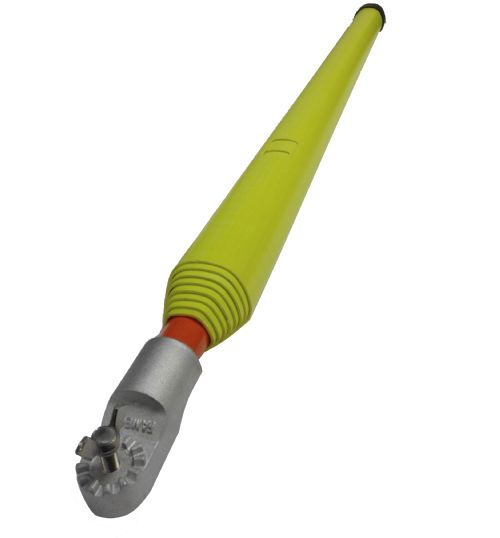

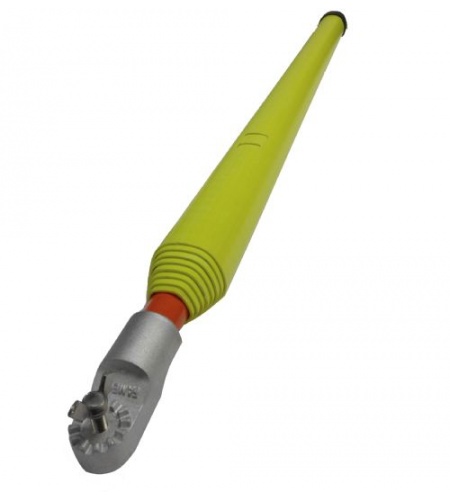

The Penta-Pole insulating stick is an all new telescopic operating stick for Medium Voltage overhead networks.
Its new radiused, pentagonal shape combines ergonomics and effectiveness in use.
With a new fibre structure, its mechanical strength is 15% greater than other types of stick.
This makes it more rigid, and therefore easier to handle.
Made up of between 2 and 9 segments, this stick adapts to all types of uses and is available in lengths up to 12 metres.
With a view to making the stick more comfortable to use, we have optimised the Penta-Pole's weight, losing 13% of the weight when compared to other sticks. Its low mass and high rigidity guarantee easy handling and accuracy.
Details:
- Pentagonal shape
- Pushbutton operation
- Complies wtth IEC 62193 and ASTM F1826
- Foam Filled end rod
- End fittings to suit customer requirements
- Robust and easy to maintain
special version of the Penta-Pole is available for UK purposes that is designed to fit in the boot of a normal size car, is terminated with a Bowthorpe-type end and offers 6.2m of reach.
| Part No. |
Extended Length |
Folded Length |
Sections |
End Fitting |
| CLY 255 PP-CB |
6.2m |
1.2m |
9 |
Bowthorpe |
| CLY 255 PP-038 |
3.8m |
1.45m |
3 |
Universal |
| CLY 255 PP-050 |
5.0m |
1.54m |
4 |
Universal |
| CLY 255 PP-064 |
6.4m |
1.6m |
5 |
Universal |
| CLY 255 PP-064 |
6.4m |
1.6m |
5 |
Universal |
| CLY 255 PP-078 |
7.8m |
1.67m |
6 |
Universal |
| CLY 255 PP-092 |
9.2m |
1.74m |
7 |
Universal |
| CLY 255 PP-106 |
10.6m |
1.8m |
8 |
Universal |
| CLY 255 PP-120 |
12m |
1.84m |
9 |
Universal |
Click here for a more detailed data sheet.
