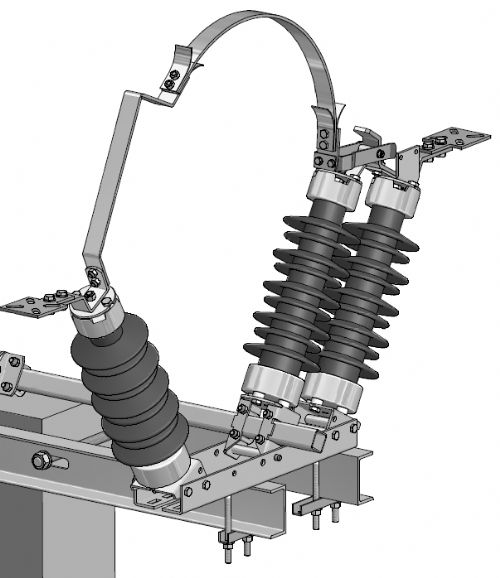

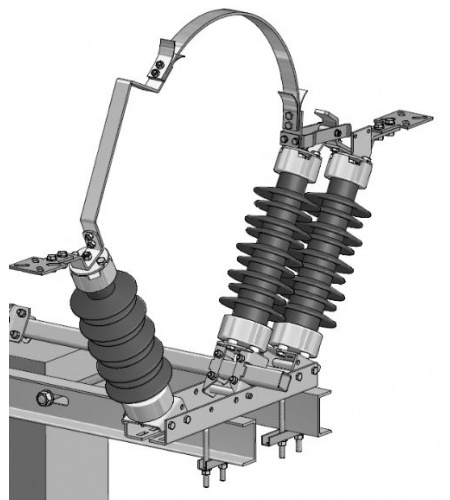

Obviously the vast array of possibilities make it almost impossible to list every possible variation of Air Break Switch Disconnector within these pages, however, listed below are the most common units supplied by Clydesdale, if the exact specification required is not listed please refer to Clydesdale for further assistance.
| Part No. |
Description |
Voltage |
Interupting Capacity |
Specification |
| CLY 200 A7611 |
Line Disconnector - 630A Ground Level Handle Operation |
24kV |
25A at 24kV |
Phase Elements fixed connections on both sides Includes X-Arm clamps for underslung installation also includes Rods, Rod Guides and Rod Insulator |
| CLY 200 A7612 |
Line Disconnector - 630A Ground Level Handle Operation |
24kV |
630A at 24kV |
Phase Elements fixed connections on sides Includes X-Arm clamps for underslung installation also includes Rods, Rod Guides and Rod Insulator |
| CLY 200 A7522-1 |
Line Disconnector - 630A Ground Level Handle Operation |
24kV |
25A at 24kV |
Phase Elements fixed connections on both sides Includes X-Arm clamps for mounting on standard C-channels Suitable for mast head or underslung installation also includes Rods, Rod Guides and Rod Insulator |
| CLY 201 A7411 |
Line Disconnector - 800A Ground Level Handle Operation Mast Head Installation |
36kV |
16A at 36kV |
Phase Elements fixed connections on both sides Includes X-Arm clamps for mounting on 2 x U-channels Phase Distance Max. 1450mm Max. Installation Height above ground 10m also includes Rods, Rod Guides and Rod Insulator |
| CLY 201 A7411L |
Line Disconnector Switch - 800A Ground Level Handle Operation Mast Head Installation |
36kV |
400A at 36kV |
Phase Elements fixed connections on both sides Includes X-Arm clamps for mounting on 2 x U-channels Phase Distance Max. 1450mm Max. Installation Height above ground 10m also includes Rods, Rod Guides and Rod Insulator |
| CLY 201 A7411E |
Line Disconnector - 800A Ground Level Handle Operation Mast Head Installation Earth Switch |
36kV |
16A at 36kV |
Phase Elements fixed connections on both sides Includes X-Arm clamps for mounting on 2 x U-channels Phase Distance Max. 1450mm Max. Installation Height above ground 10m also includes Rods, Rod Guides and Rod Insulator Mechanical Interlock between Earth Blades and Disconnector |
| CLY 201 A7411LE |
Line Disconnector - 800A Ground Level Handle Operation Mast Head Installation Earth Switch |
36kV |
400A at 36kV |
Phase Elements fixed connections on both sides Includes X-Arm clamps for mounting on 2 x U-channels Phase Distance Max. 1450mm Max. Installation Height above ground 10m also includes Rods, Rod Guides and Rod Insulator Mechanical Interlock between Earth Blades and Disconnector |
