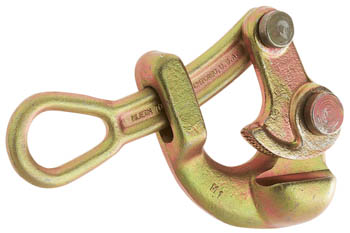

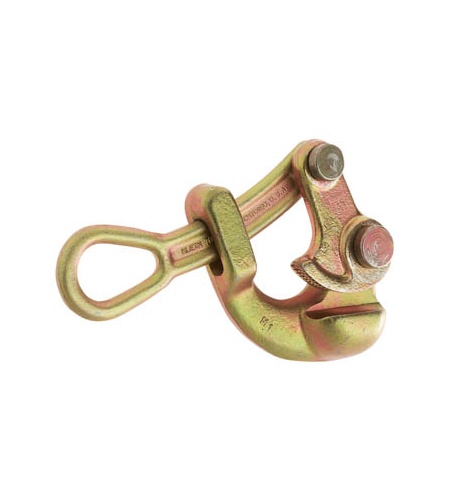

Designed for use when light, compact grip is desired and where conductor damage is not a factor. Gripping pressure of the knurled jaw is applied to a 6.35mm cable area.
1604-20L and 1625 series have a swing latch to help hold cable in the jaw.
| Part No. |
Min Cable Diameter |
Max Cable Diameter |
SWL |
Weight |
| CLY 920 1604-10 |
1.52mm |
6.32mm |
450kg |
0.45kg |
| CLY 920 1604-20 |
3.18mm |
12.7mm |
900kg |
1.14kg |
| CLY 920 1604-20L |
3.18mm |
12.7mm |
900kg |
1.14kg |
| CLY 920 1625-20 |
7.11mm |
19.05mm |
1600kg |
1.50kg |
| CLY 920 1625-20 7/8 |
9.65mm |
22.35mm |
1600kg |
1.59kg |
| CLY 920 1625-20 1 |
12.70mm |
25.40mm |
1600kg |
1.59kg |
