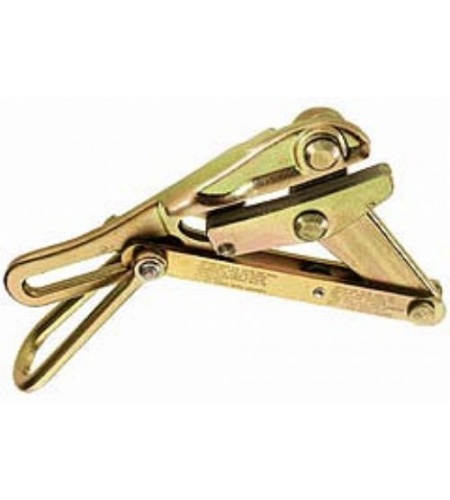

A family of grips for cable sizes from 3.10mm to 25.4mm. Double 'V' grooves give four-point contract, reducing chance of slipping and providing proper alignment. For larger conductors, see our grips with round inside-jaw contour.
| Part No. |
Min Cable Diameter |
Max Cable Diameter |
SWL |
Weight |
Jaw Length |
| CLY 920 1613-40 |
3.05mm |
9.4mm |
900kg |
1.36kg |
10.2cm |
| CLY 920 1684-5 |
5.54mm |
13.97mm |
1600kg |
2.84kg |
12.7cm |
| CLY 920 1692-5 |
5.54mm |
13.97mm |
1600kg |
2.89kg |
12.7cm |
| CLY 920 1684-5F* |
4.06mm |
13.97mm |
1600kg |
7.05kg |
18.4cm |
| CLY 920 1628-16 |
7.87mm |
15.75mm |
2500kg |
7.05kg |
18.4cm |
| CLY 920 1628-17 |
12.7mm |
19.05mm |
2500kg |
7.73kg |
18.4cm |
| CLY 920 1628-18 |
19.05mm |
25.4mm |
2500kg |
7.73kg |
18.4cm |
<*Similar to No. 1684-5 above except with a file inserted in jaw for extra gripping power. Replacement file No. 578 and screws No. 573 are also available.
