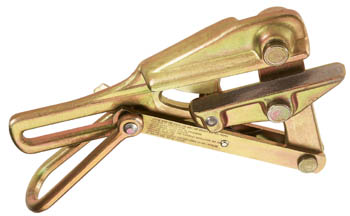

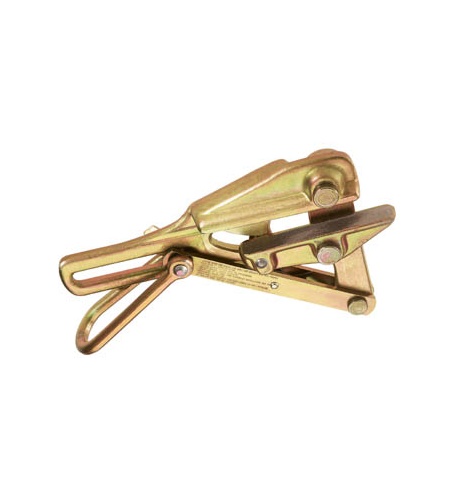

Lightweight grips designed for use on aluminium conductors in distribution work. Round jaw shaped to provide maximum contact with circumference of cable, less likely to damage conductors. Supplied with spring and locking loop handles, allowing jaws to be held in an open position for easier placement on cable.
| Part No. |
Min Cable Diameter |
Max Cable Diameter |
SWL |
Weight |
Jaw Length |
| CLY 920 1678-20 |
24.38mm |
25.91mm |
1600kg |
3.41kg |
14.0cm |
| CLY 920 1678-30 |
25.91mm |
27.43mm |
900kg |
3.41kg |
14.0cm |
| CLY 920 1678-40 |
27.43mm |
28.96mm |
900kg |
3.41kg |
14.0cm |
| CLY 920 1678-50 |
28.96mm |
30.48mm |
900kg |
3.41kg |
14.0cm |
