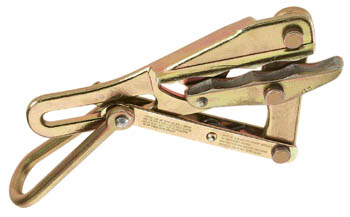

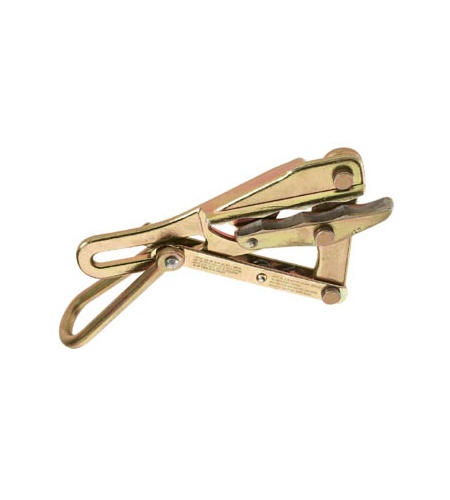

Grips for PVC-Covered Conductors CLY 920 1659
Call: +44 (0) 1234 855 855 to order
The serpentine jaws of this grip series are specially machined to allow insertion of insulated conductor through the jaws, which reduce danger of slippage which might result in insulation damage. Eliminates necessity of stripping insulation from conductor. Round inside-jaw contour.
| Part No. | Min Cable Diameter | Max Cable Diameter | SWL | Weight | Jaw Length |
| CLY 920 1659-20 | 5.08mm | 10.67mm | 900kg | 1.36kg | 10.2cm |
| CLY 920 1659-30 | 7.87mm | 12.70mm | 900kg | 1.70kg | 12.1cm |
| CLY 920 1659-40 | 12.45mm | 20.07mm | 1600kg | 3.52kg | 14.0cm |
| CLY 920 1659-50 | 20.07mm | 25.65mm | 1600kg | 3.52kg | 14.0cm |
