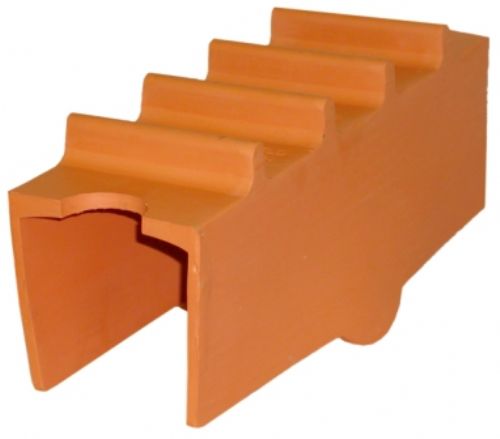

Cross Arm Covers CLY 558 145
Call: +44 (0) 1234 855 855 to order
Manufactured from the same blend of prime EPDM known as Salcor® as our Blankets and line hose, Insulated Covers are used to shroud all sorts of overhead apparatus from pin insulators to HV Fuses.
X-Arm Covers reduce electrical stresses on line hose and / or jumpers. X Arm Covers have interior ribs to minimise movement when in situ on the crossarm.
| Part No. | X-Arm Size | Voltage Class | Overall Size | Weight |
| CLY 558 145 | Up to 102 x 114mm | 2 | 368 x 117 x 105mm | 1.4kg |
| CLY 558 1186 | Up to 140 x 152mm | 4 | 432 x 152 x 140mm | 2.3kg |
