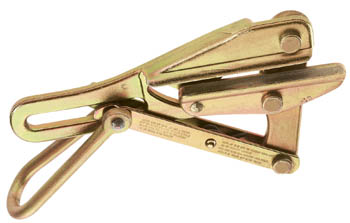

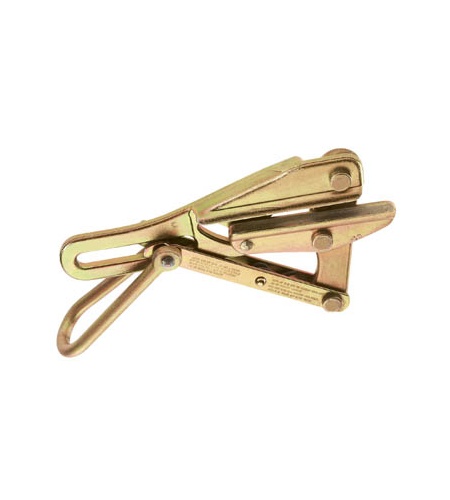

Each of these grips is custom finished to cable specifications. Designed for hollow conductors and other large-diameter cables, the round jaws of these grips are shaped to provide maximum contact with the circumference of the cable, virtually eliminating conductor damage. Because we hold these grips in blank and finish each grip to your specs, allow 60 to 90 days for delivery. Since these grips are made to special order, they are not returnable.
Your order must specify exact outside diameter of cables, circular mill with strand combination or manufacturer code. Each grip for large diameter cable is made for one-size cable only.
| Part No. |
Min Cable Diameter |
Max Cable Diameter |
SWL |
Weight |
| CLY 920 1628-16P |
7.87mm |
22.35mm |
2500kg |
7.7kg |
| CLY 920 1628-30 |
21.59mm |
31.50mm |
2500kg |
12.27kg |
| CLY 920 1628-40 |
31.50mm |
39.12mm |
2500kg |
14.45kg |
| CLY 920 1628-50 |
25.40mm |
46.23mm |
2500kg |
15.45kg |
*Minimum-maximum sizes listed indicate the unfinished size range capability for each Cat. No. Each grip is finished to fit one specific cable size only within range shown.
