Transformers are easily the most common perch point for
any animal or bird. When utilities are making selections for guards,
transformers must be a priority. The contact risk points on a
bushing are typically from a phase to ground contact.
Reliaguard® Bushing Guards are designed to stay in place.
Retention of the guard once applied is a critical design feature
to be considered. Reliaguard guards are manufactured with
a superior closure design to ensure the bushing guards stay
where they are installed. The lock fastener included with each
guard provides an optional method of ensuring guards can’t be
inadvertently dislodged.
FEATURES
• Overlapping fingers to prevent birds and animals from
using gaps to store food or nesting materials
• Manufactured with a superior closure design to ensure
the bushing covers stay where they are installed
• Covers can accommodate conductor exiting at various
angles
• Manufactured from a proprietary material known as
Reliatanium™
• Reliatanium achieves a V-0 flammability classification,
the highest rating for the UL-94 test standard

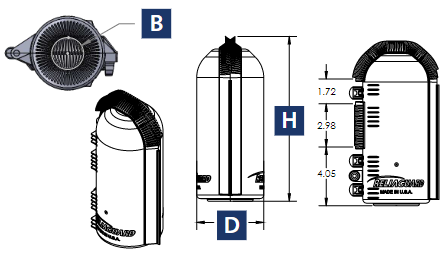

| Product Name |
Part Number |
Height Dimensions* |
Diameter Dimensions* |
Base Port Dimensions* |
| #4 - Small Bushing Guard w/ Loop Latch1 |
BC-14991 |
5.7 (144.8) |
4.4 (111.8) |
1.8 (45.7) base port |
| #4 - Medium Bushing Guard w/ Loop Latch1 |
BC-14992 |
10.4 (264.2) |
4.4 (111.8) |
1.8 (45.7) base port |
| #5 - Small Bushing Guard - Mesh - 2.25" Base1 |
BC-15008 |
5.6 (142.2) |
5 (127) |
2.25 (57.2) base port |
| #5 - Small Bushing Guard - Solid - 2.25" Base1 |
BC-15010 |
5.6 (142.2) |
5 (127) |
2.25 (57.2) base port |
| #5 - Medium Bushing Cover - 2.25” base1 |
BC-15011 |
8.1 (205.7) |
5 (127) |
2.25 (57.2) base port |
| #5 - Medium Bushing Cover - Mesh - 2.25”base1 |
BC-15013 |
8.1 (205.7) |
5 (127) |
2.25 (57.2) base port |
| #5 - Small Bushing – Solid - 2.8” base1 |
BC-15997 |
5.6 (142.2) |
5 (127) |
2.8 (71.1) base port |
| #5 - Small Bushing – Mesh - 2.8” base1 |
BC-15999 |
5.6 (142.2) |
5 (127) |
2.8 (71.1) base port |
| #5 - Small Bushing Guard - Small Base 1.8"1 |
BC-16003 |
5.6 (142.2) |
5 (127) |
1.8 (45.7) base port |
| #5 - Small Bushing Guard - Mesh - Small Base 1.8"1 |
BC-16005 |
5.6 (142.2) |
5 (127) |
1.8 (45.7) base port |
| #5 - Medium Bushing Guard - Small Base 1.8”1 |
BC-16006 |
8.1 (205.7) |
5 (127) |
1.8 (45.7) base port |
| #5 - Medium Bushing Guard - Mesh - Small Base 1.8"1 |
BC-16008 |
8.1 (205.7) |
5 (127) |
1.8 (45.7) base port |
| #5 - Medium Bushing - Solid - 2.8” base1 |
BC-16201 |
8.1 (205.7) |
5 (127) |
2.8 (71.1) base port |
| #5 - Medium Bushing - Mesh - 2.8” base1 |
BC-16203 |
8.1 (205.7) |
5 (127) |
2.8 (71.1) base port |
| #7 - Medium Bushing Guard2 |
BC-15021 |
11.8 (299.7) |
7 (177.8) |
2.5 (63.5) base port |
| #7 - Medium Bushing Guard - Mesh2 |
BC-15023 |
11.8 (299.7) |
7 (177.8) |
2.5 (63.5) base port |
| #8 - Medium Bushing Guard2 |
BC-15031 |
17.8 (452.1) |
8 (203.2) |
3.5 (88.9) base port |
| #8 - Medium Bushing Guard - Mesh2 |
BC-15033 |
17.8 (452.1) |
8 (203.2) |
3.5 (88.9) base port |
| #8 - Small Bushing Guard2 |
BC-15028 |
15 (381) |
8.25 (210) |
3.5 (88.9) |
| #8 - Small Bushing Guard - Mesh2 |
BC-15030 |
15 (381) |
8.25 (210) |
3.5 (88.9) |
| #10 - Medium Bushing Guard2 |
BC-15041 |
19.8 (502.9) |
10.5 (266.7) |
4.6 (116.8) base port |
| #10 - Medium Bushing Guard - Mesh2 |
BC-15043 |
19.8 (502.9) |
10.5 (266.7) |
4.6 (116.8) base port |
1 Security pins are optional and not included
2 Security pins included
* Dimensions in inches (mm)
