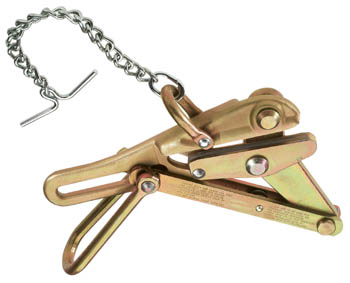

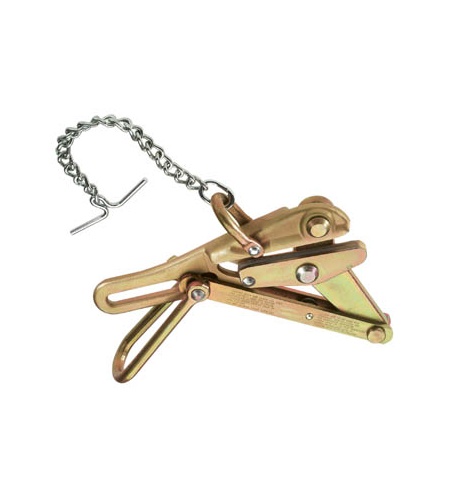

A 1684-5AT is identical to Bell-System type 'L' strand puller; 1628-16AT is identical to Bell-System 'H' strand puller. All are equipped with chain, toggle and shackle.
| Part No. |
Min Cable Diameter |
Max Cable Diameter |
SWL |
Weight |
Jaw Length |
| CLY 920 1684-5AT |
5.54mm |
13.97mm |
900kg |
2.84kg |
12.7cm |
| CLY 920 1628 16AT |
7.87mm |
15.75mm |
2500kg |
7.05kg |
18.4cm |
| CLY 920 1692-5AT |
5.54mm |
13.97mm |
1600kg |
2.89kg |
12.7cm |
