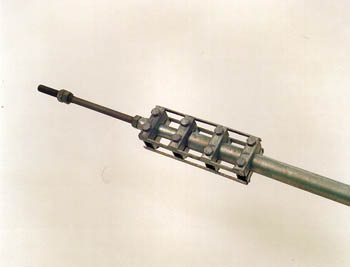

One unique feature of the Clydesdale Air Break Switch Disconnector is the telescopic operating rods that are used in conjunction with the ground level handle mechanism. The advantage of this telescopic operating rod is that the rod extends by upto 2m ensuring that the Air Break Switch Disconnector is set to operate perfectly. This telescopic rod also avoids the necessity of cutting the operating rod to length as is required by some competitor rod sets. In conjunction with the telescopic rod Clydesdale also supplies a fixed length rod (Top Rod), this clamps to the phase coupling tube which opens / closes the Air Break Switch Disconnector on the operation of the Handle Operating Mechanism.
| Part No. |
Description |
Length |
| CLY 202 A7352-1 |
Top Rod - with Fork |
3.25m |
| CLY 202 A7552-2 |
Intermediate Rod |
3.25m |
| CLY 202 A7352-3 |
Lower Telescoping Rod |
1.7m extending to 3.5m |
| CLY 202 A7352-4 |
Extension Rod with Socket & Extra Guide |
2.0m |
| CLY 202 A7373 |
Hotstick Op Rod - Fork Both Ends |
2.0m extending to 3.8m |
| CLY 202 A7435 |
Complete Rod Set with Top & Lower |
7.3m extending to 9.1m |
| CLY 202 2862032 |
Complete Rod Set with Top & Lower |
5.8m extending to 7.6m |
Please note that neither individual rods (except CLY 202 A7352-4) nor complete rod sets are supplied with any joining piece, please specify joining piece required from the detailed alternatives below.
