ABC Anchor Clamps CLY 212 34

ABC Anchor Clamps


Used for the termination of the 2 or 4 core type ABC (Aerial Bundled Conductor), to poles or walls by means of standard hook. The clamps are easy to install and have been tested to international standards including ESI 43-14. The plastic parts are made of frost, heat and UV resistant material and the aluminium parts are of a weather resistant type.

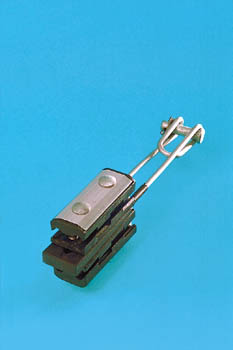

As well as the standard type anchor clamp, there is also the range taking variation CLY 212 118.1202 which handle all core sizes from 50 to 120mm2. These fittings will revolutionise the way that ABC is installed in the future. Now instead of the confusing variety of fittings, you need, broadly speaking, only need one suspension clamp - CLY 210 SO 99, one anchor clamp - CLY 212 118-1202 and one wall bracket - CLY 210 SO 125. All fittings shown on this page have been extensively tested to and comply with ESI 43-14.

Part No. For Conductors Torque Weight
CLY 212 34-225 2 x 25 25 0.30kg
CLY 212 34-25 4 x 25 25 0.41kg
CLY 212 34-250 2 x 25 48 0.80kg
CLY 212 34-50 4 x 50 48 0.93kg
CLY 212 34-295 2 x 95 80 1.10kg
CLY 212 34-95 4 x 95 80 1.69kg
CLY 212 118-1202 4 x 50 - 120 44 1.20kg

Get in touch with Clydesdale for more information
