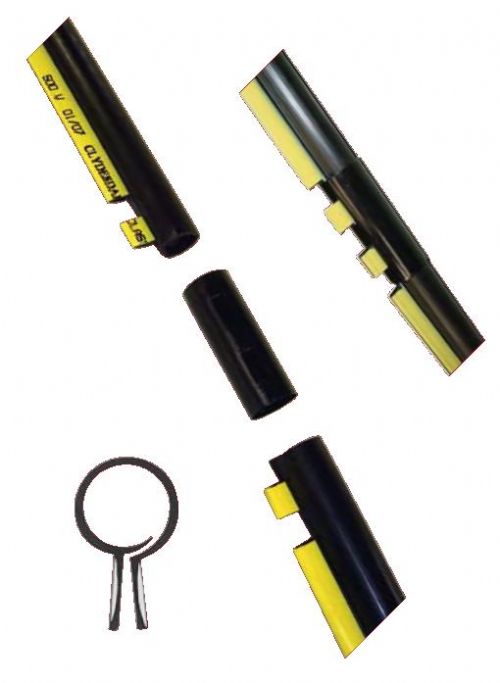

Designed specifically for use on the open wire LV network, this shrouding is an inexpensive method of increasing safety when work is to be carried out near or underneath LV power lines. Black body with yellow skirt for maximum visibility and double safety, providing not just electrical insulation but also a clear visual reminder of the hazard. Manufactured from MDPE (Medium Density Polyethylene) and tested and approved to EA 43-103. Coupling units are available which allow multiple lengths to be applied. Shrouding and couplings are available in the following sizes:
| Part No. |
Diameter |
Dimension |
Weight |
| CLY 975 2503 |
25mm |
3m Length |
1.0kg |
| CLY 975 2550 |
25mm |
50m Coil |
17.0kg |
| CLY 975 2500 |
25mm |
Coupling |
>0.1kg |
| CLY 970 5503 |
55mm |
3m Length |
1.2kg |
| CLY 975 5500 |
55mm |
Coupling |
>0.1kg |
